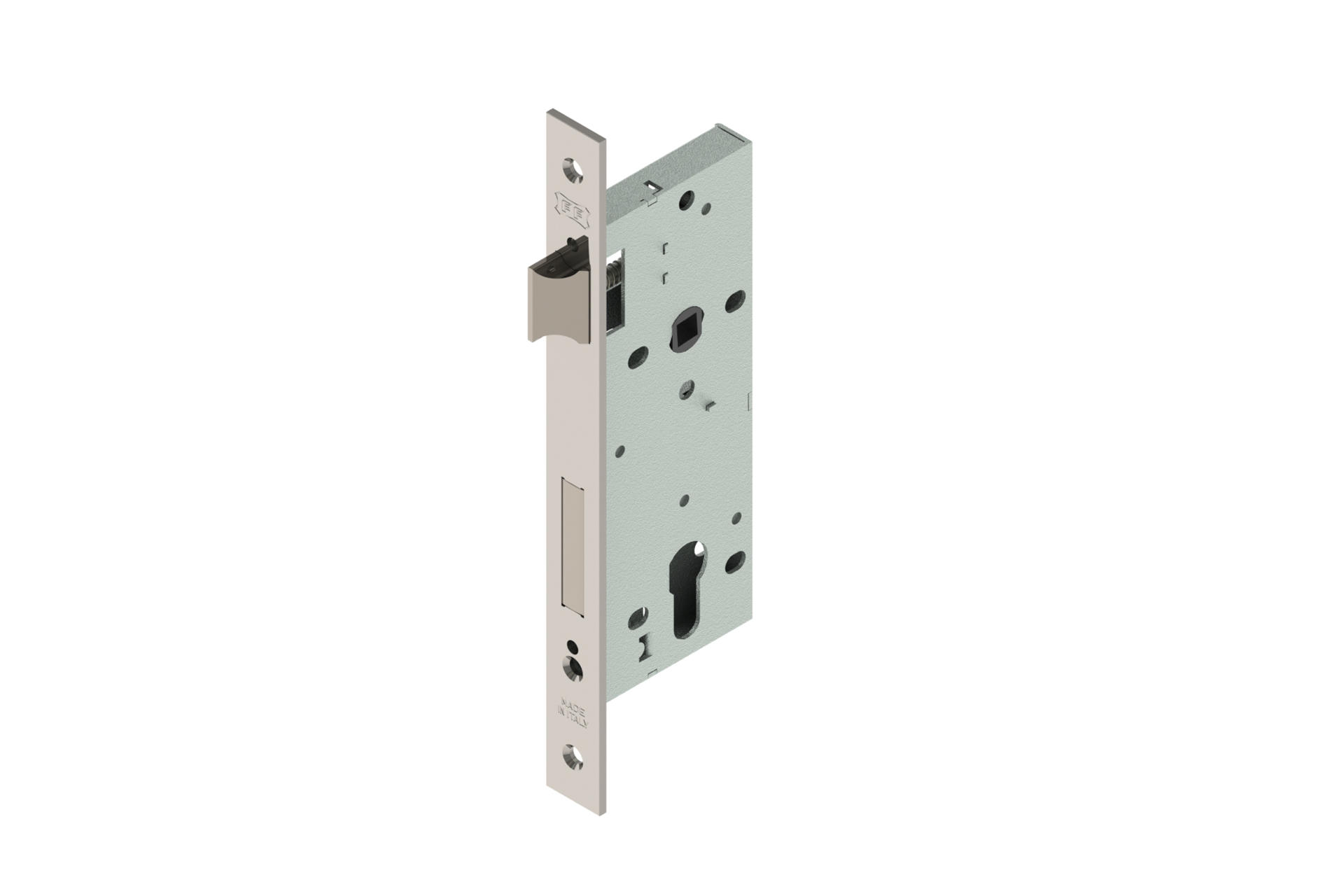

Euro profile mortice lock

Open or closed case in several finishings.

product catalogue general catalogue

  • Euro profile mortice lock
    Euro profile mortice lock
    Euro profile mortice lock
  • For wooden doors

  • For metal frames

    Products range

    • Open or closed case
    • Single or double throw deadbolt.
    • Single or triple deadbolt.
    • Straight or beveled reversible latchbolts operated either by key or by handle.
    • Adjustable roller.
    • Inox stainless, steel or brass forend.
    • 85, 70 or 72 mm. spacing.
    • 7 or 8 mm. spindle hole.
    • Backsets 20-25-30-35-40-45-50-60-70 mm.
    • Square or rounded edges.
    • Lever mortice lock with long key for inside doors.
    • Double spindle hole for bathroom doors on request.
    • Large range of cylinders with various features and in different sizes.
    • Large range of striking plates available.
    • Locks can be supplied keyed alike (KA-KS) or masterized (MK­-GMK) on request.
    • Suitable for replacingmost of the existing electric locks.

    Security features

    • Case with 38/42 mm. Holes to fix security escutcheon.
    • Europrofile cylinders in accordance with EN 1303
    • Paracentric keyway.
    • Various degree cams to prevent forcing.

    Material specification

    • Steel case
    • Brass, steel and inox stainless steel forends and striking plates.
    • Sintered metal latchbolts.
    • Extruded solid steel or solid brass for deadbolts.
    • Extruded solid brass cylinder body and plug.
    • Inox steel cylinder springs.
    • Keys obtained from brass strip.

    Finishings

    • Case electrostatically coated by epoxidic powder.
    • Zinc plated case.
    • Brass forends and striking plates in natural brass, mirror polished brass, nickel plated and chrome plated brass finishing.
    • Steel forends and striking plates in yellow bichromate, brass, bright nickel, dull nickel, bronze plated galvanic finishing and ''gold'' or grey colour painted finishing.
    • PVD finishing on request.
    • Inox stainless steel forends and striking plates.

    Packaging

    • Singly boxed complete with cylinder, strike and fixing screws.

    Garantee

    • The mechanical operation of all our locks is guaranteed 5 years.

    Products range

    • Horizontal and vertical type locks.
    • Mechanical and electric lock.
    • Open and closed case.
    • Horizontal locks with closed case and oval cylinder.
    • Electric horizontal lock closed case and oval cylinder.
    • Vertical locks with open case and oval cylinder.
    • Vertical locks with closed case and Euro profile cylinder.
    • Vertical locks with closed case and cross key cylinder.
    • Backset 15-20-25-30-35-60-70-80 mm.
    • Single or double throw deadbolts.
    • Hook bolt.
    • Reversible latchbolt operated by handle or key.
    • Adjustable roller.
    • Available accessories.
    • Large range of cylinders with various features and in different sizes [see cylinder indexl.
    • Locks can be supplied: keyed alike[KA-KS] or masterized [MK-GMK].
    • Suitable lor replacing many models of mortice locks.
    • Strikes not included. lo be ordered separately.

    Security features

    • Euro profile double cylinders conforming to EN 1303 · grade 3 · Oval cylinders with 5 pin tumbler key mechanism.
    • Cross-key cylinders.
    • Paracentric keyway.

    Material specification

    • Steel case, forend and strike.
    • Sinterized metal and zamac latchbolts.
    • Zamac deadbolts.
    • Extruded solid brass cylinder body and plug.
    • Inox steel cylinder springs.
    • Brass strip lor keys.

    Finishings

    • Zinc plated case and forend.
    • Nickel plated or zinc plated forend

    Packaging

    • Singly boxed

    Garantee

    • All our locks are covered by a 5 year mechanical guarantee
