Italian Electric rim lock

Security devices manufactured in many configurations. Painted or zinc plated finishing.

product catalogue general catalogue

  • Italian Electric rim lock

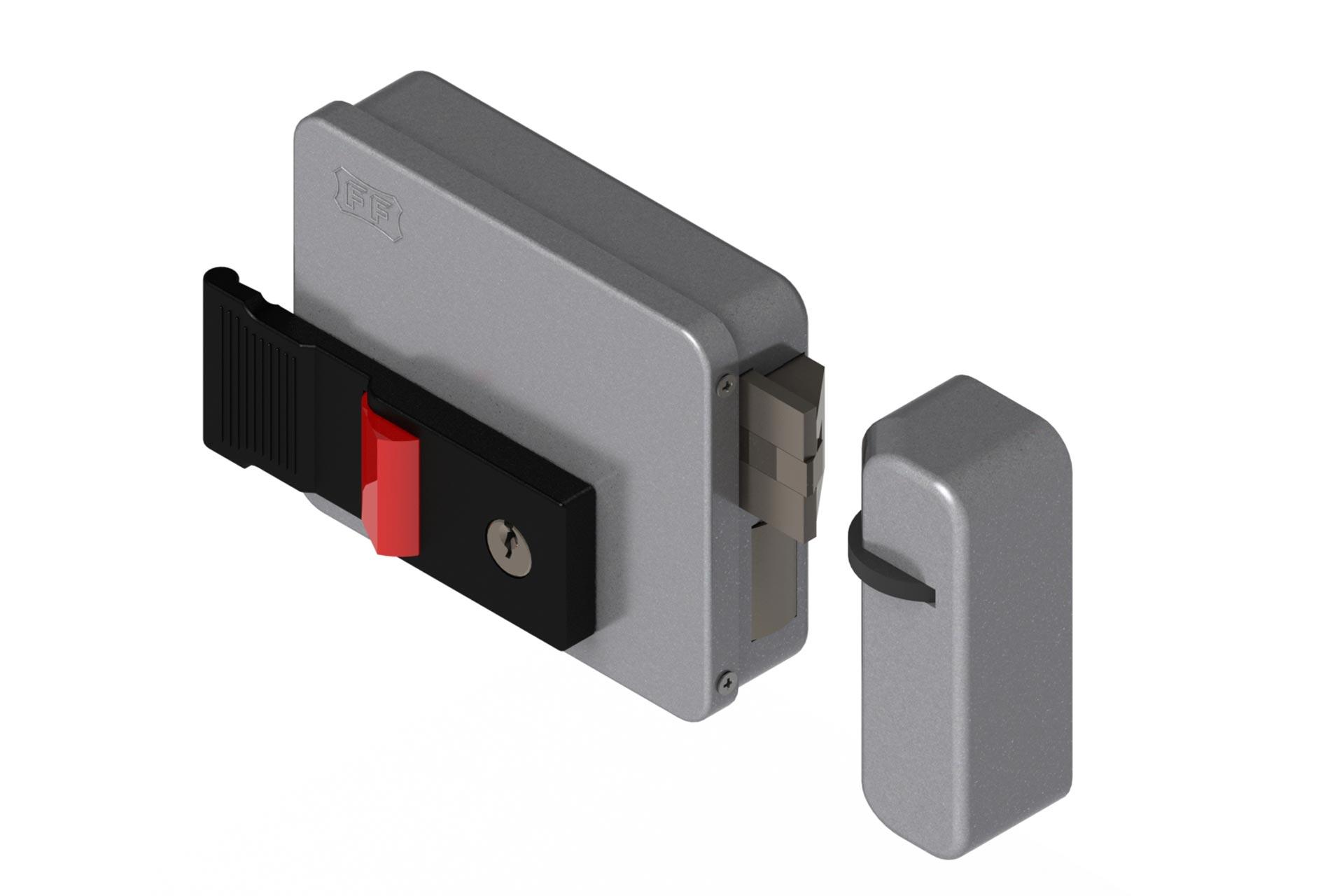

    Italian Electric rim lock
    Italian Electric rim lock
  • Security rim lock

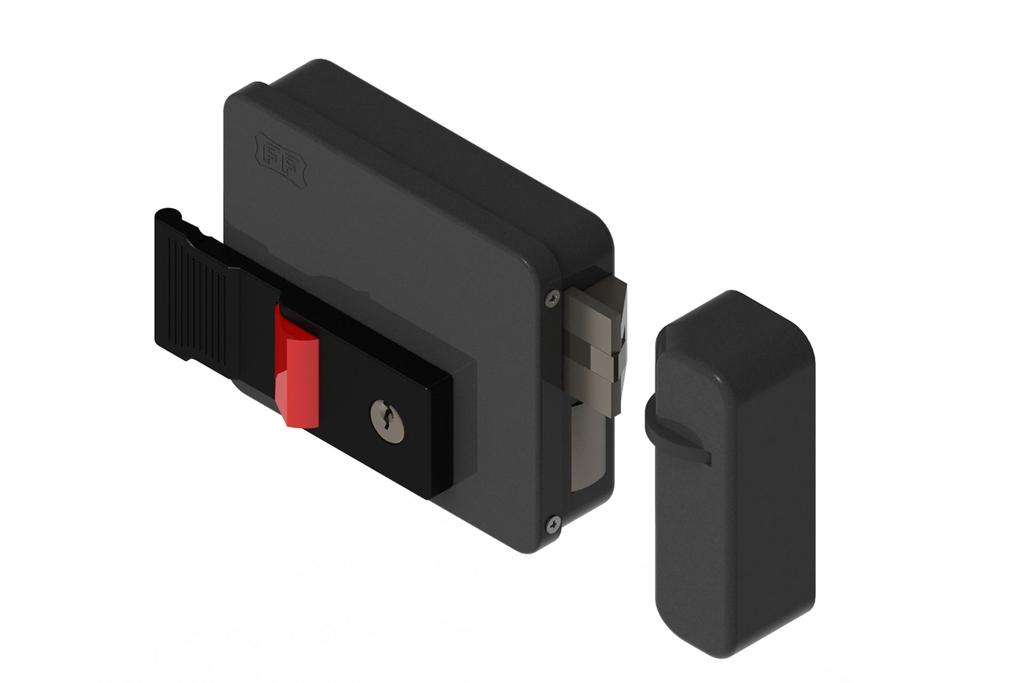

    Security rim lock
    Security rim lock

Product range

  • Painted or zinc plated finishing.
  • Self locking latchbolt only or self locking latchbolt and deadbolt models.
  • Stop device version on self locking latchbolt only models.
  • Inside cylinder only, inside button only or inside button and cylinder models.
  • Right or left hand.
  • Fixed outside 50 mm. cylinder length or loose outside cylinder, adjustable length from 35 till  90 mm.
  • Backsets 40-50-60-70-80 mm. for self locking latchbolt only models.
  • Backsets 50-60-70-80 mm. for self locking latchbolt and deadbolt models.
  • Double solenoid unit or single solenoid unit models.

Additional product information

  • Stop device: by pushing button and at the same time turning the key clockwise, it is possible to hold latchbolt in open position. By turning the key clockwise only, the push button is deactivated holding latchbolt in closed position.
  • 35-45-60-70-80-90 mm. outside fixed cylinder length on request.
  • Locks can be supplied keyed alike (KA).
  • Adjustable keep with roller reducing frictions during opening and closing operations.
  • Double and single solenoid unit, both working with voltage 12 V ac. 15W.
  • Special wire coupling with terminals for quick clamping.
  • Ergonomic button and pulling handle.
  • Suitable for replacingmost of the existing electric locks.
  • Operation: outside by key, inside by push button or key.

Security features

  • Outside cylinders with 5 pin tumbler key mechanism (2 picking resistant) with thousands of different combinations preset and bit by computer system equipments.
  • 50.000 cycle durability.
  • Paracentric keyway.
  • Self locking latchbolt.
  • Single and double throw heavy duty deadbolt.
  • Protected solenoids preventing anyone reaching them from outside.
  • CE certified product.

Material specification

  • Steel case and keep.
  • Nickel plated brass latchbolt and deadbolt.
  • ABS or steel button and handle.
  • Extruded solid brass cylinder body and plug.
  • Inox steel cylinder springs.
  • Keys obtained from brass strip.
  • Solenoid supplied by most reliable manufacturer.

Finishings

  • Case and keep electrostatically coated by epoxidic powder over zinc plated material suitable for outdooor fitting.
  • Zinc plated case and keep suitable for outdoor fitting.
  • Zinc plated keep supporting plate.
  • Nickel plated brass keys.

Available accessories

  • Transformer
  • Zinc plated steel protecting roof and supporting plate.
  • Zinc plated keep supporting plate.
  • Roses.
  • Adjustable tube and connecting bar for outside fixed cylinder.

Packaging

  • Singly boxed

Garantee

  • The mechanical operation of all our locks is guaranteed 5 years.
