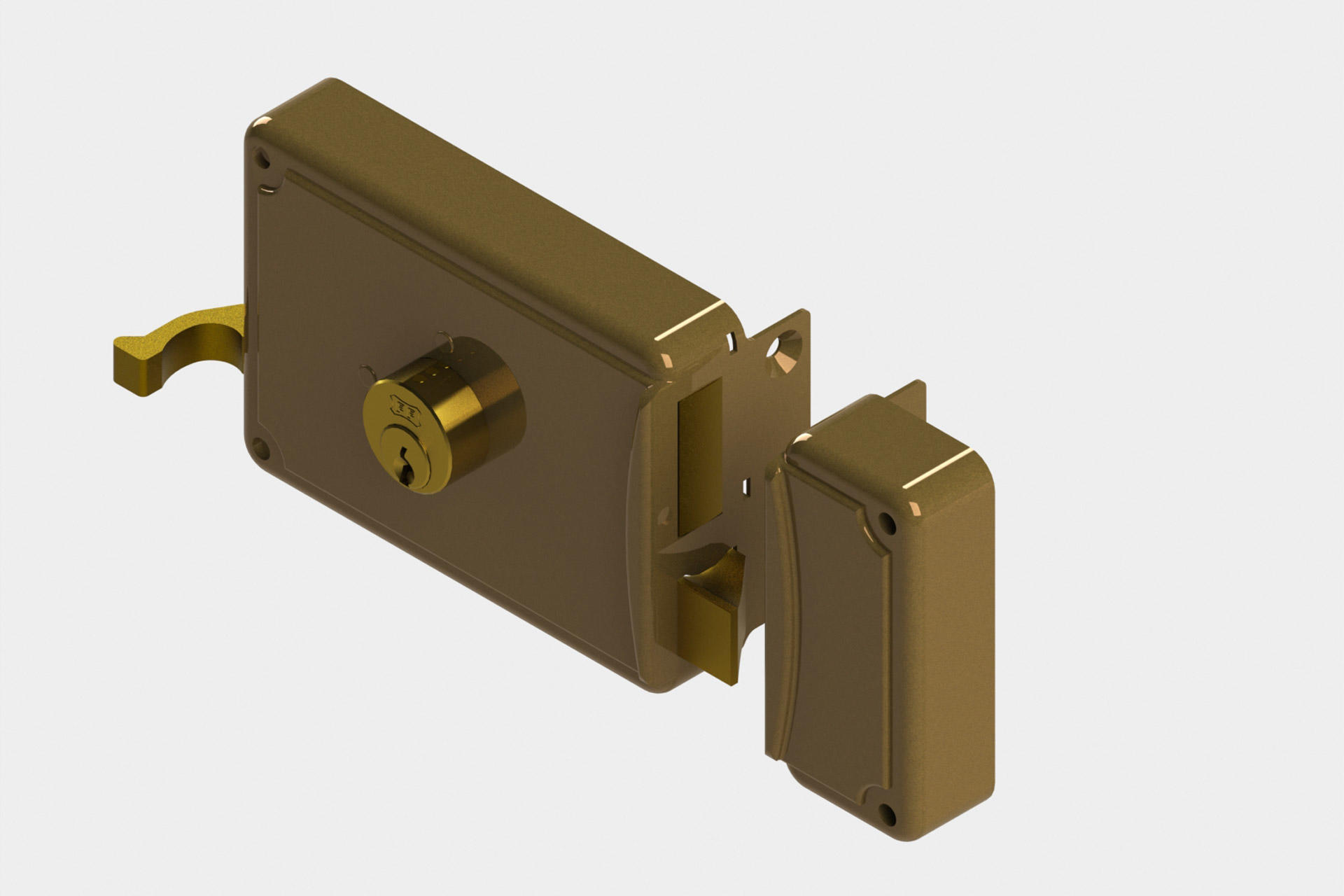

Mechanical Rim Lock

Product range

• Painted or zinc plated finishing.
• Inside cylinder or inside knob models.
• Right or left hand.
• Fixed outside 50 mm. cylinder length or loose outside cylinder, adjustable length from 35 till 90 mm.
• Latch and double or triple throw deadbolt
• Latch and double throw deadbolt Athens model.
• Latch and double throw deadbolt with chain.
• Latch and triple throw deadbolt with 6 or 8 mm. spindle hole.
• Latch and double or triple throw deadbolt with inside knob.
• Locks can be supplied keyed alike (KA)
• Suitable for replacingmost of the existing electric locks.

Security features

• Outside cylinders with 5 pin tumbler key mechanism (2 picking resistant) with thousands of different combinations preset and bit by computer system equipments.
• 50.000 cycle durability.
• Praracentric keyway.
• Reversible key model on request.

Material specification

• Steel case and keep.
• Syntered steel or brass latchbolt.
• Extruded solid steel deadbolt.
• Extruded solid brass cylinder body and plug.
• Inox steel cylinder springs.
• Keys obtained from brass strip.

Finishings

• Case and keep elctrostatically coated by epoxidic powder suitable for outdoor fitting.
• Zinc plated case and keep suitale for outdoor fitting.
• Nickel plated brass keys.

Available accessories

• Roses
• Adjustable tube and connecting bar for outside fixed cylinder.

Packaging

• Singly boxed

Garantee

• The mechanical operation of all our locks is guaranteed 5 years.

Product range

• Painted or zinc plated finishing
• lnside knob models
• Right models only
• Fixed outside 50 mm. cylinder length or loose outside cylinder, adjustable length form 35 till 90 mm
• /4 or 6 or 8 throw deadbolt only
• 5 or 7 throw deadbolt plus built in latchbolt
• Locks can be supplied keyed alike KA.
• Suitable lor replacing many models of nightlatch rim locks

Security features

• Outside cylinders with 5 pin tumbler key mechanism [2 picking resistant] with thousands of different Z tem equipments
• 50.000 cycle durability
• Paracentric keyway
• Reversible key model on request

Material specification

• Steel case and keep
• Extruded solid steel deadbolt
• Extruded solid brass cylinder body and plug
• Inox steel cylinder springs
• Brass strip lor keys

Finishings

• Case and staple electrostatically coated by epoxidic powder suitable lor outdoor fitting
• Zinc plated case and keep suitable lor outdoor fitting
• Nickel plated brass keys

Available accessories

• Roses
• Adjustable tube and connecting bar lor outside fixed cylinder

Packaging

• Paired boxed

Garantee

• All our locks are covered by a 5 year mechanical guarantee

Product range

• Centrai or side application.
• Round cylinder: from outside/inside by same symmetric key.
• Double bit key system
• Knob: from inside only with stop security device.
• Unassembled or assembled spurs on bolts.
• Bent bolts tor centrai or side application.
• Flat bolts for centrai application.
• Oversize bent bolt projection.
• Paired right and left keyed alike.
• Locks can be supplied keyed alike (KA)
• Suitable for replacing same kinds of locks

Security features

• Large range of key combinations

Material specification

• Steel case and bolts
• Extruded solid brass cylinder body and plug
• Extruded solid steel spurs
• Inox steel cylinder springs
• Brass strip for keys

Finishings

• Zinc plated case and bolts.
• Nickel plated brass keys.

Available accessories

• Fixing plates

Packaging

• Singly or multi boxed

Garantee

• All our locks are covered by a 5 year mechanical guarantee

Product range

• Upper or lower fastening.
• Upper and lower double fastening.
• Round cylinder in different lengths.
• European profile cylinder in different lengths.
• Double bit key.
• Straight deadbolts with or without hub spring.
• 60-67-70 mm. spacings and 8-9 hubs.
• Assembled spurs or without spurs with bolt bea ring threaded hole.
• Locks can be supplied keyed alike KA.
• Models with European profile cylinders can be keyed alike (KA-KS)
• or masterized (MK-GMK).
• Suitable lor replacing many models of locks.

Security features

According to cylinders types:

• Up and over door locks with 5 pins (2 picking resistant) round cylinder
• Up and over door locks either with europrofile cylinder 5 pins (2 picking resistant) or with high security 6 pin special cylinders.
• Up and over door locks with European profile cylinder supplied with heavy duty case and bolts.
• Release device from inside.
• Paracentric keyway.

Material specification

• Steel case and bolts.
• Extruded solid brass cylinder body and plug.
• Extruded solid steel spurs.
• Inox steel cylinder springs.
• Brass strip lor keys.

Finishings

• Zinc plated case and bolts.
• Nickel plated brass keys.

Available accessories

• Handles
• Plates
• Fixing plates

Packaging

• Singly boxed

Garantee

• All our locks are covered by a 5 year mechanical guarantee
